| # System scaffolding |
 |
|
 |
| |

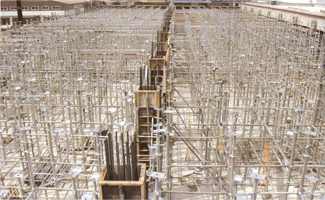

System scaffolding is consisted of vertical post, horizontal ledger post, U-head jack and jack base. it supports that ground structure or apartment & store structure, furthermore, be support of upper floors structure such as various engineering works and bridge .
|
|
|
|
|
 |
|
 |
|
| |
| VERTICAL POST |
|
|
|
| |
Main attachment that transmit upper part weight of mold to lower part
|
|
|
| Specification |
| Classification |
Weight(Kg) |
Length(mm) |
| P25 |
12.0 |
2,588 |
| P17 |
8.3 |
1,725 |
| P12 |
6.2 |
1,291 |
| P08 |
4.4 |
863 |
| P04 |
3.0 |
432 |
| P02 |
2.0 |
216 |
|
|
|
|
|
|
|
|
|
| |
| # HORIZONTAL LEDGER POST |
|
|
|
| |
Connecting horizontally to prevent getting bent of vertical post
|
|
|
| Specification |
| Classification |
Weight(Kg) |
Length among
the post(mm) |
Length(mm) |
| H18 |
5.0 |
1,829 |
1,725 |
| H15 |
4.3 |
1,524 |
1,463 |
| H12 |
3.5 |
1,219 |
1,158 |
| H09 |
2.8 |
914 |
853 |
| H06 |
2.1 |
610 |
549 |
| H03 |
1.3 |
305 |
244 |
|
|
|
|
|
|
|
|
|
| |
| # DIAGONAL BRACING |
|
|
|
| |
Fix connecting with horizontal post and horizontal post, vertical post and vertical post for enduring horizontal force acting in scaffolding.
|
|
|
| Specification |
| Classification |
A(mm) |
B(mm) |
Weight(Kg) |
Length(mm) |
| B1715 |
1,725 |
1,524 |
5.3 |
2,139 |
| B1712 |
1,725 |
1,219 |
5.0 |
1,974 |
| B1709 |
1,725 |
914 |
4.7 |
1,845 |
| B1215 |
1,291 |
1,524 |
4.6 |
1,807 |
| B1212 |
1,291 |
1,219 |
4.2 |
1,609 |
| B1209 |
1,291 |
914 |
3.8 |
1,447 |
| B0815 |
863 |
1,524 |
4.1 |
1,530 |
| B0812 |
863 |
1,219 |
3.6 |
1,290 |
| B0809 |
863 |
914 |
3.4 |
1,082 |
|
|
|
|
|
|
|
|
|
| |
| # U-HEAD JACK |
|
|
|
| |
control prop connecting tube with system scaffolding and tube Establishing to upper part of vertical post
|
|
|
| Specification |
| Name of product |
Weight(Kg) |
Length(mm) |
| U-HEAD |
5.4 |
600 |
|
|
|
|
|
|
|
|
|
| |
| # JACK BASE |
|
|
|
| |
Control prop that establishes on lower part system scaffolding and keeps horizontality and verticality of vertical post
|
|
|
| Specification |
| Name of product |
Weight(Kg) |
Length(mm) |
| JACK BASE |
5.0 |
600 |
|
|
|
|
|
|
|
|
|
| |
| # TUBE |
|
|
|
| |
Establish to right angle direction with joist for transmitting weight of upperfloor to underfloor and support joist.
|
|
|
| Specification |
| Name of product |
Spec |
| TUBE |
75*125*3t |
|
|
|
|
|
|
|
|
|
| |
| # SOCKET |
|
|
|
| |
After union to upper part of vertical post use at U-HEAD establishment
|
|
|
| Specification |
| Name of product |
Weight(Kg) |
Length(mm) |
| SOCKET |
0.5 |
120 |
|
|
|
|
|
|
|
|
|
| |

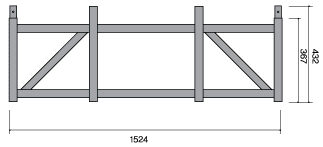

| # TRUSS |
|
|
|
| |
Use on beam lower part of erection difficult place or building
|
|
|
|
| |
| Specification |
| Name of product |
Weight(Kg) |
Length(mm) |
| TRUSS |
18 |
1,524 |
|
|
|
|
|
|
|
|
|
|
|
)
)
)
)
