Concrete form panels |
|
|
|
|
The concrete form panels are kind of systemized formwork, easy to install and to dismantle for the reinforced concrete construction in any type. The structure of the panels is conveniently designed for various functions, enabling the panels to be reused repeatedly, helping save the costs on materials and reduce the times for work by simplifying and accelerating the process. Consequently it can cut down on the labor costs and expenses. Basic and standard products as well as various products for different types and sizes of constructions are available from manufacturing. Recycling the panel after its life-span can help reduce costs, because we can remove plywood, adjust the frame and the angle, get rid of the impurities, carry out coloring and finally attach the new plywood. The recycled forms still perform as good as the new ones, with substantially reduced costs. Other types of recycled panel are those who combine the recycled frames and the used plywood which is still in good condition. |
|
|
|
|
|
| A/B |
|
900mm |
|
1,200mm |
|
1,500mm |
|
1,800mm |
|
| 150mm |
|
7.8kg |
|
9.6kg |
|
12.0kg |
|
13.7kg |
|
| 200mm |
|
8.7kg |
|
11.1kg |
|
12.8kg |
|
15.5kg |
|
| 250mm |
|
9.6kg |
|
11.9kg |
|
14.6kg |
|
16.5kg |
|
| 300mm |
|
10.1kg |
|
12.8kg |
|
16.0kg |
|
17.4kg |
|
| 350mm |
|
11.0kg |
|
13.7kg |
|
17.0kg |
|
19.2kg |
|
| 400mm |
|
11.9kg |
|
14.6kg |
|
17.8kg |
|
21.0kg |
|
| 450mm |
|
12.4kg |
|
15.5kg |
|
18.7kg |
|
22.3kg |
|
| 500mm |
|
13.3kg |
|
16.9kg |
|
20.1kg |
|
24.0kg |
|
| 550mm |
|
14.2kg |
|
18.3kg |
|
22.0kg |
|
26.0kg |
|
| 600mm |
|
14.6kg |
|
19.0kg |
|
23.0kg |
|
28.0kg |
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
Inside Corner
|
|
|
|
|
|
|
 |
|
|
The product is the part of the formwork, which is installed temporarily inside the corner of the structure. Installed at the corner of the structure, the product provides the connection between the concrete form panels. Various sizes of the product are available for the connection, depending on the space between the concrete form panels. |
|
|
| A(mm) |
|
B(mm) |
|
L(mm) |
|
weight(kg) |
|
Thickness(t) |
|
| 100 |
|
100 |
|
1200 |
|
10.8 |
|
2.3 |
|
| 100 |
|
150 |
|
1200 |
|
12.2 |
|
2.3 |
|
| 100 |
|
200 |
|
1200 |
|
13.2 |
|
2.3 |
|
| 150 |
|
150 |
|
1200 |
|
13.2 |
|
2.3 |
|
| 150 |
|
200 |
|
1200 |
|
14.4 |
|
2.3 |
|
| 200 |
|
200 |
|
1200 |
|
15.6 |
|
2.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Outside Corner
|
|
|
|
|
|
|
 |
|
|

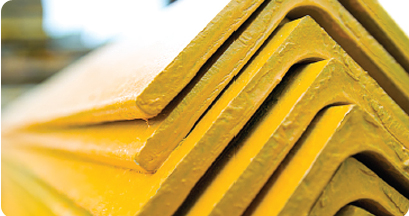

The product is part of the formwork, which is installed temporarily outside the corner of the structure. The product provides the connection between the concrete form panels. The right size product can be used for any connection, depending on the length of the concrete form panels to be connected. |
|
|
| A(mm) |
|
B(mm) |
|
L(mm) |
|
weight(kg) |
|
Thickness(t) |
|
| 63.5 |
|
63.5 |
|
1200 |
|
6.8 |
|
6 |
|
| 63.5 |
|
63.5 |
|
2400 |
|
13.6 |
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Corcrete Form Panel Attachments
|
|
|
|
|
The attachments such as wedge pins/hooks (including flat ties) are necessary to systemize the various formworks, and also perform to construct the different types of formworks (Concrete form panels, Inside corners, Outside corners) into a whole structure. Wedge pins help put together concrete form panels, concrete form panels with inside corners, concrete form panels with outside corners. Hooks help connect the tube scaffoldings to the systematically completed formworks, enhancing the systematic strength of the formworks. |
|
|
| Accessory
(Attachment) |
|
Model |
|
Spec |
|
Weight(Kg) |
|
|
Hook |
|
Large |
|
0.15 |
|
|
|
|
Small |
|
0.12 |
|
|
Wedge Pin |
|
L-80mm |
|
0.038 |
|
|
Flat Tie |
|
L-100mm |
|
0.15 |
|
|
Timber Bracket |
|
batting
(single line) |
|
0.70 |
|
|
|
|
batting
(double line) |
|
0.75 |
|
|
Filler |
|
10 * 1200 |
|
0.495 |
|
|
Filler |
|
20 * 1200 |
|
1.035 |
|
|
Filler Pin |
|
L-86mm |
|
0.04 |
|
|
|
|
|
 |
| Square Large Hook |
|
|
 |
| Square Small Hook |
|
|
 |
| Vertical Large Hook |
|
|
 |
| Horizontal Small Hook |
|
|
 |
| Timber Bracket |
|
 |
| Flat Tie |
|
|
 |
| Wedge Pin |
|
|
 |
| Filler Pin |
|
|
 |
| Timber Bracket |
|
 |
| Nut |
|
|
 |
| Washer |
|
|
 |
| Washer |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
