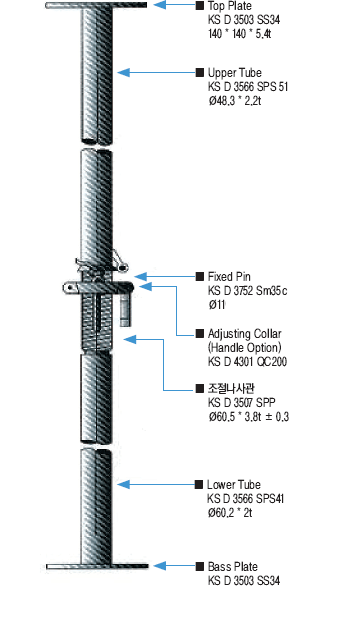

Shoring & Props
|
|
|
|
• The products are used for supporting formworks.
• High-strength steel tube provides the enhanced safety and the adjustable height.
• Security is guaranteed by evenly distributing the load onto the shoring and props
while the simplified
structure can help reduce the times for constructing and dismantling.
Additionally the hot galvanized iron can
dramatically increase the life-span of the product
• The products divide into the white pipes of hot galvanized and the black pipes of general paint coating.
|
|
|
| Model |
|
Length(M) |
|
Max.(Kg) |
|
Min.(Kg) |
|
Weight(Kg) |
|
| SPS-40 |
|
1.2 |
|
2.0 |
|
2000 |
|
1650 |
|
7.3 |
|
| SPS-50 |
|
1.5 |
|
2.6 |
|
2000 |
|
1600 |
|
9.1 |
|
| V1 |
|
1.85 |
|
3.1 |
|
2200 |
|
1500 |
|
11 |
|
| V2 |
|
2.15 |
|
3.5 |
|
2000 |
|
1450 |
|
12 |
|
| V4 |
|
2.65 |
|
4.0 |
|
1800 |
|
1350 |
|
15 |
|
| V5 |
|
3.6 |
|
5.0 |
|
1600 |
|
800 |
|
17 |
|
| V6(3*3) |
|
3.4 |
|
6.0 |
|
930 |
|
500 |
|
19 |
|
|
|
|
 |
| New Product White |
 |
| Used White |
 |
| Used Red |
|
 |
|
|
|
|
|
 |
|
 |
|
|
|
